R-UP-220
Nicole, Tim, and many others are already raving about our products

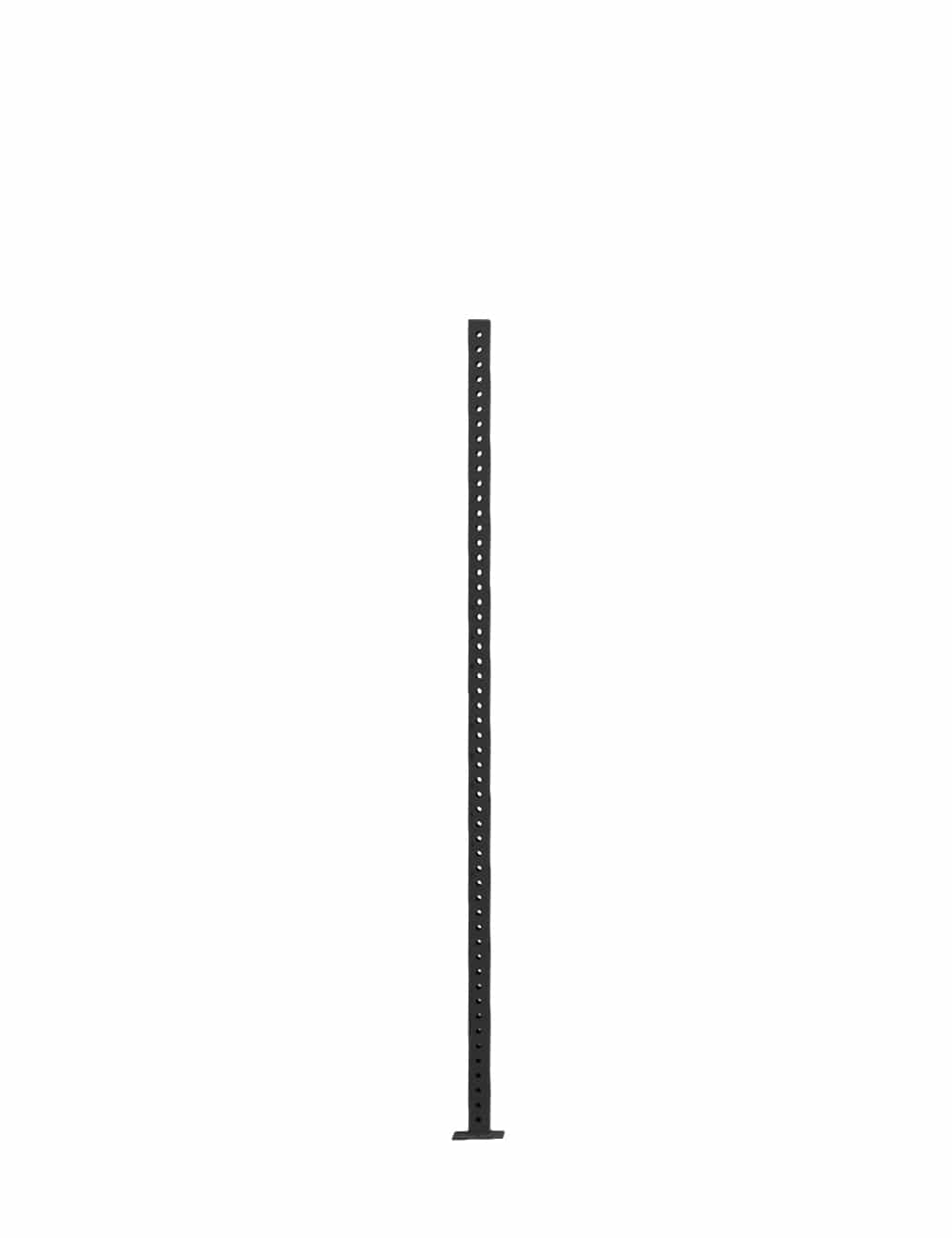

Upright Beam
Upright Beam
R-UP-220
Four lengths – 220 to 365 cm for every ceiling
J-hooks level in seconds – laser-engraved markers
3 mm steel, 75 × 75 mm profile – A-Line standard
Floor plate included – ready to anchor
Couldn't load pickup availability
Usually ready in 24 hours
Upright Beam
Height: 220 cm
-
cross equip Schweiz
Pickup available, usually ready in 24 hours
Schanzstrasse 1
8330 Pfäffikon ZH
Switzerland+412160746
Description
Vertical post for rigs, racks and wallmount setups
The upright beam is the vertical backbone of our A-Line series. Every freestanding rig, wallmount rack and squat stand in our system is built on these posts. This is where J-hooks, safety arms, pull-up bars, dip attachments, plate storage and multi-grip bars mount. You choose between four lengths – 220, 240, 275 or 365 cm – matched to your ceiling height and training goal. 220 and 240 cm fit standard Swiss ceilings (basement, garage, ground floor). 275 cm leaves room for pull-ups and muscle-ups in higher rooms. 365 cm is the post for rope climbs, high halls and Box setups with ceiling-free training space.
A-Line spec: 3 mm steel, 75 × 75 mm profile, laser hole pattern
The upright beam has 3 mm steel wall thickness and a 75 × 75 mm square profile – the A-Line spec, identical across all our racks and rigs. The hole pattern runs at 17 mm hole diameter and 5 cm spacing top to bottom. Laser-engraved height markers help you set J-hooks and safety arms level in seconds – no measuring, no counting. Each beam ships with a pre-welded floor plate for anchoring. Black powder-coated, identical to the entire A-Line family.
A-Line – Dein Gym, dein System.
Dieses Produkt ist Teil der A-Line – gebaut, um mit dir zu wachsen. Starte klein, erweitere jederzeit. Ein System, alle Möglichkeiten.
Technical Specifications
| Profile | 75 × 75 mm (square) |
|---|---|
| Steel | 3 mm |
| Hole diameter | 17 mm |
| Hole spacing | 5 cm |
| Hole pattern | Laser-engraved height markers |
| Floor plate | Included (welded) |
| Finish | Black powder-coated |
| Series | A-Line (fully compatible) |
| Unit | 1 piece |
| Available lengths | 220 cm (18 kg) |
Upright Beam – which length fits your setup?
| Variant | Length / Net weight | Recommended ceiling | Best for |
|---|---|---|---|
| R-UP-220 | 220 cm / 18 kg | from 230 cm | Basement, garage, compact wallmount or squat stand |
| R-UP-240 | 240 cm / 20 kg | from 250 cm | Standard home gym with normal ceiling height |
| R-UP-275 | 275 cm / 22 kg | from 285 cm | Freestanding rig, pull-ups and muscle-ups at full ROM |
| R-UP-365 | 365 cm / 30 kg | from 375 cm | Rope climb, high hall, Box setup with high ceiling |
Choose the length by your ceiling height and use case. Standard Swiss ceilings (240–260 cm): 220 or 240 cm. Pull-ups with full overhead ROM: 275 cm. Rope climbs or Box hall: 365 cm. In a wallmount setup with rope climb you can also combine different lengths – shorter beams in the back, longer in the front.
Frequently Asked Questions
How many upright beams do I need for my setup?
Which length fits my ceiling?
What do the laser-engraved height markers mean?
Can I combine different lengths?
What else do I need for a freestanding rig?
How are the beams anchored to the floor?
Are the beams compatible with other A-Line components?
Customer reviews
The upright beams are the first thing we mounted in our Box, over 12 years ago. They're still standing – no wear marks. If you're planning your own rig or a wallmount setup, this is where everything starts. Pick the right length for your room and build modular. Over the years pull-up bar, safety arms, storage follow – the system carries it all.
