Description
Two stations, one rig – the double module
The CWR-2-HLO is the expansion of the CWR-1-HLO. Same HIGH/LOW concept – alternating high and low uprights – but with two full training stations in one unit. The pull-up bar hangs from the low upright facing the wall, while the shrimp trawler on the high upright holds rings or a climbing rope. Thanks to the curve of the shrimp trawler, rings and rope hang freely in open space without touching the wall. The result: Two athletes work at the same time – one on pull-ups, one on muscle-ups or rope climbs. Without getting in each other's way. If you know from the start that your box needs more than one station, the CWR-2-HLO saves you the step-by-step build.
Same quality, double the capacity
3 mm steel, 75x75 mm profile, 17 mm holes – identical specs to all our A-Line rigs and the CWR-1-HLO. Wall and floor anchoring ensure nothing moves, even when both stations are in use at the same time. J-cups and complete mounting hardware are included. Important: You need a solid concrete wall. Lightweight walls are not suitable. We strongly recommend floor anchoring – especially with the double module and multiple athletes working at once.

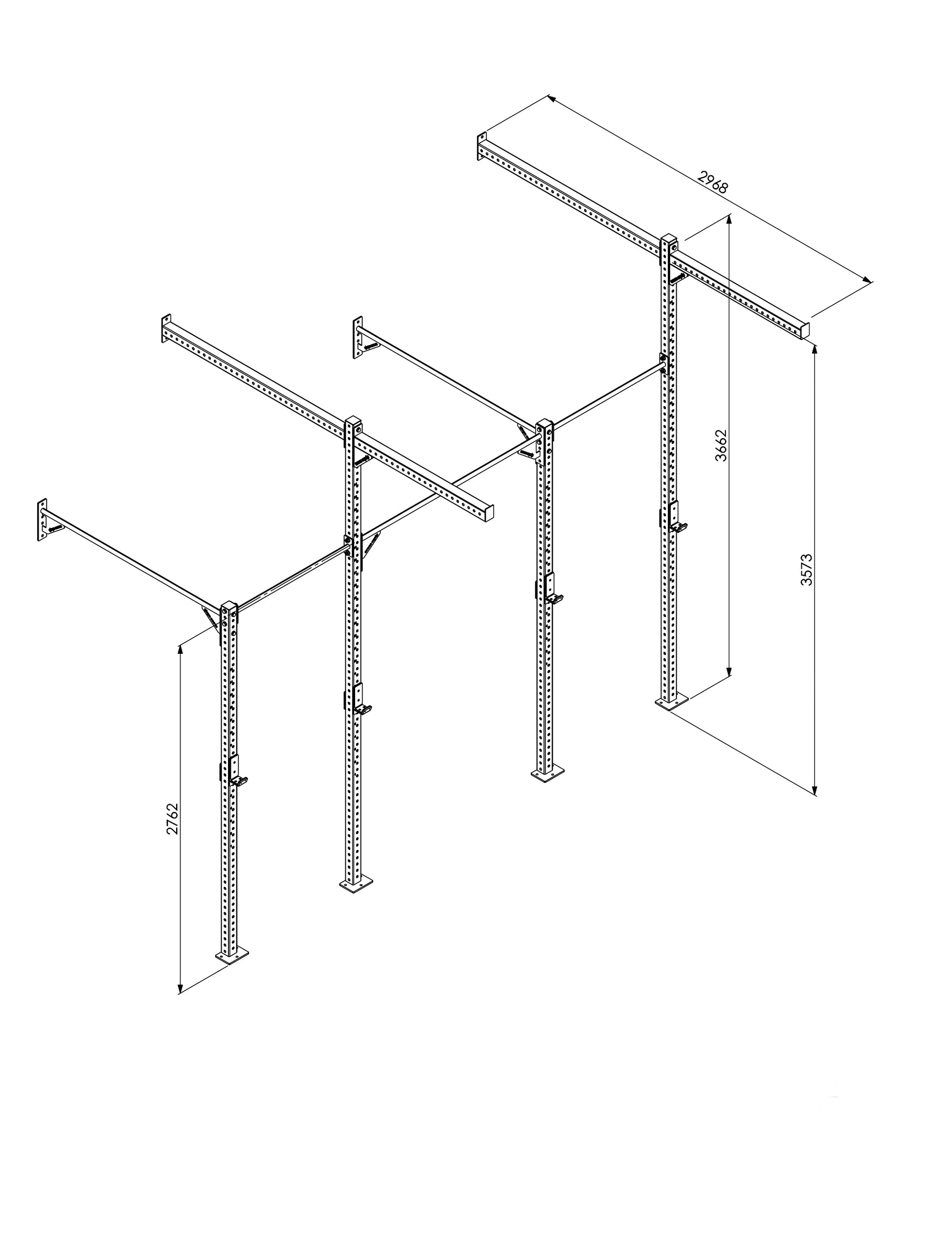

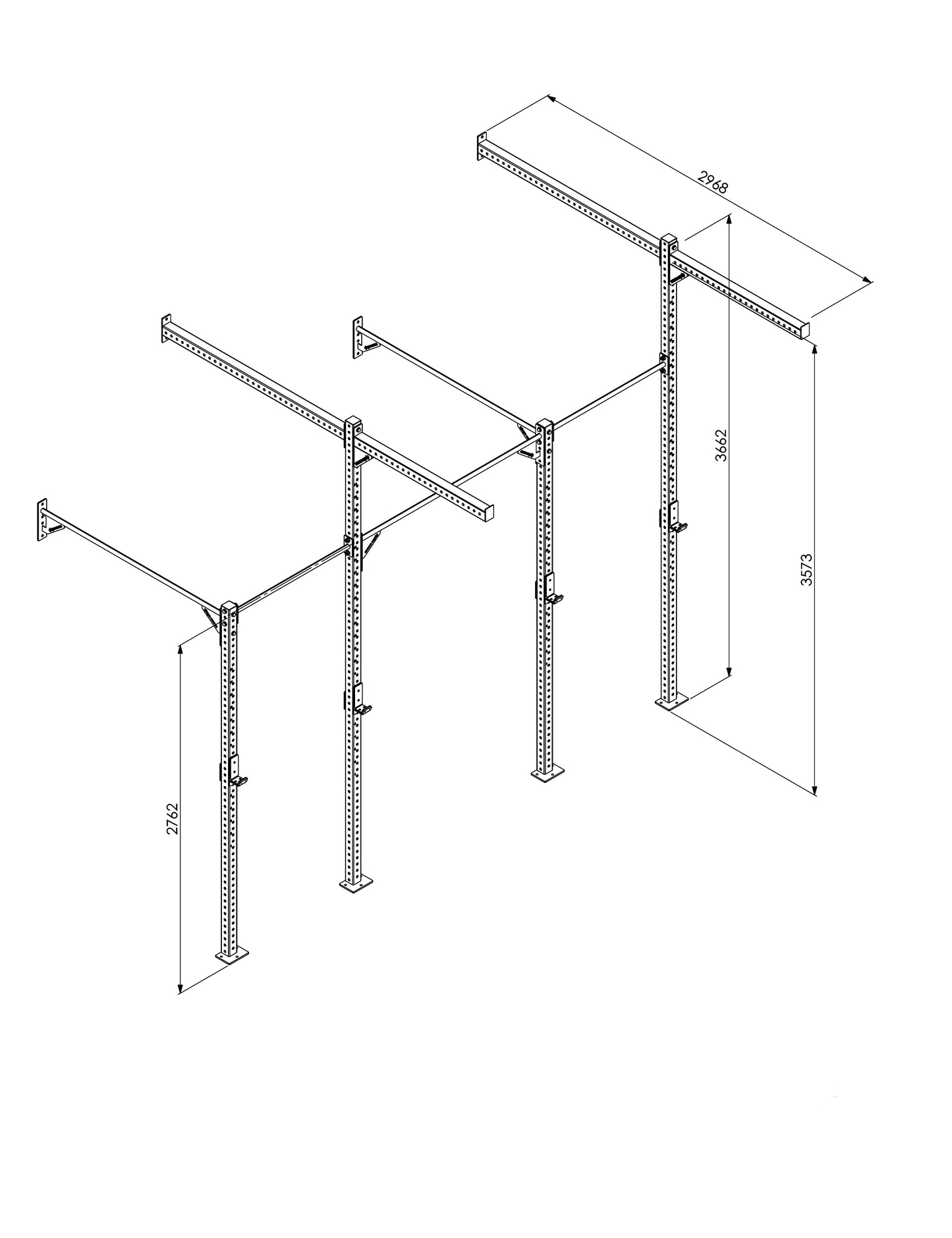

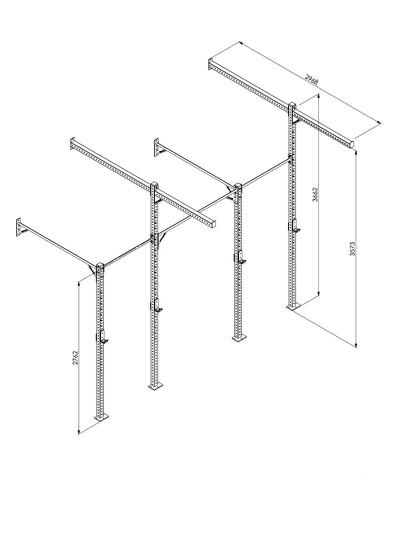

Technical Specifications
| Height | 366 cm |
|---|---|
| Width | 420 cm |
| Depth (distance from wall) | 296 cm |
| Weight (all parts) | 190 kg |
| Steel | 3 mm thick |
| Profile | 75 x 75 mm |
| Hole diameter | 17 mm |
| Hole spacing | Every 5 cm |
| Finish | Black powder coated |
| Series | A-Line (fully compatible) |
| Mounting | Wall mount, floor anchoring recommended |
| Wall requirement | Solid concrete wall |
CWR-2-HLO vs. CWR-1-HLO
| Criteria | CWR-2-HLO (Double Module) | CWR-1-HLO (Single Module) |
|---|---|---|
| Training stations | 2 at the same time | 1 |
| HIGH/LOW concept | Yes | Yes |
| Pull-ups | Yes | Yes |
| Rope climbs / muscle-ups | Yes – shrimp trawler | Yes – shrimp trawler |
| Wall space | Larger, but more efficient per station | More compact |
| A-Line compatible | Yes | Yes |
| Scalable | Yes, unit by unit | Yes, unit by unit |
| Price | CHF 1'590 | CHF 749 |
| Makes sense from | Group training in small classes | Small boxes, home gyms |
Frequently Asked Questions
What's the difference to the CWR-1-HLO?
When does the CWR-2 make more sense than two CWR-1 units?
What type of wall do I need?
Do I need to anchor the rig to the floor as well?
Can I combine CWR-1 and CWR-2 units?
Are A-Line attachments compatible?
Customer reviews
If you run a box with larger classes, you don't want to build every module one by one. The CWR-2 gives you two stations right away – pull-ups on one side, muscle-ups or rope climbs on the other. We use the double module in box setups where it's clear from the start: More than five people will be training on the rig at the same time.
