CWR-1 Wallmount HIGH/LOW
CWR-1 Wallmount HIGH/LOW
Pull-ups, muscle-ups, rope climbs – one rig
More stations on less wall – HIGH/LOW concept
A-Line compatible – all attachments fit
Scalable – expand unit by unit
Couldn't load pickup availability
Usually ready in 24 hours
CWR-1 Wallmount HIGH/LOW
-
cross equip Schweiz
Pickup available, usually ready in 24 hours
Schanzstrasse 1
8330 Pfäffikon ZH
Switzerland+412160746
Description
Three disciplines, one wall rig

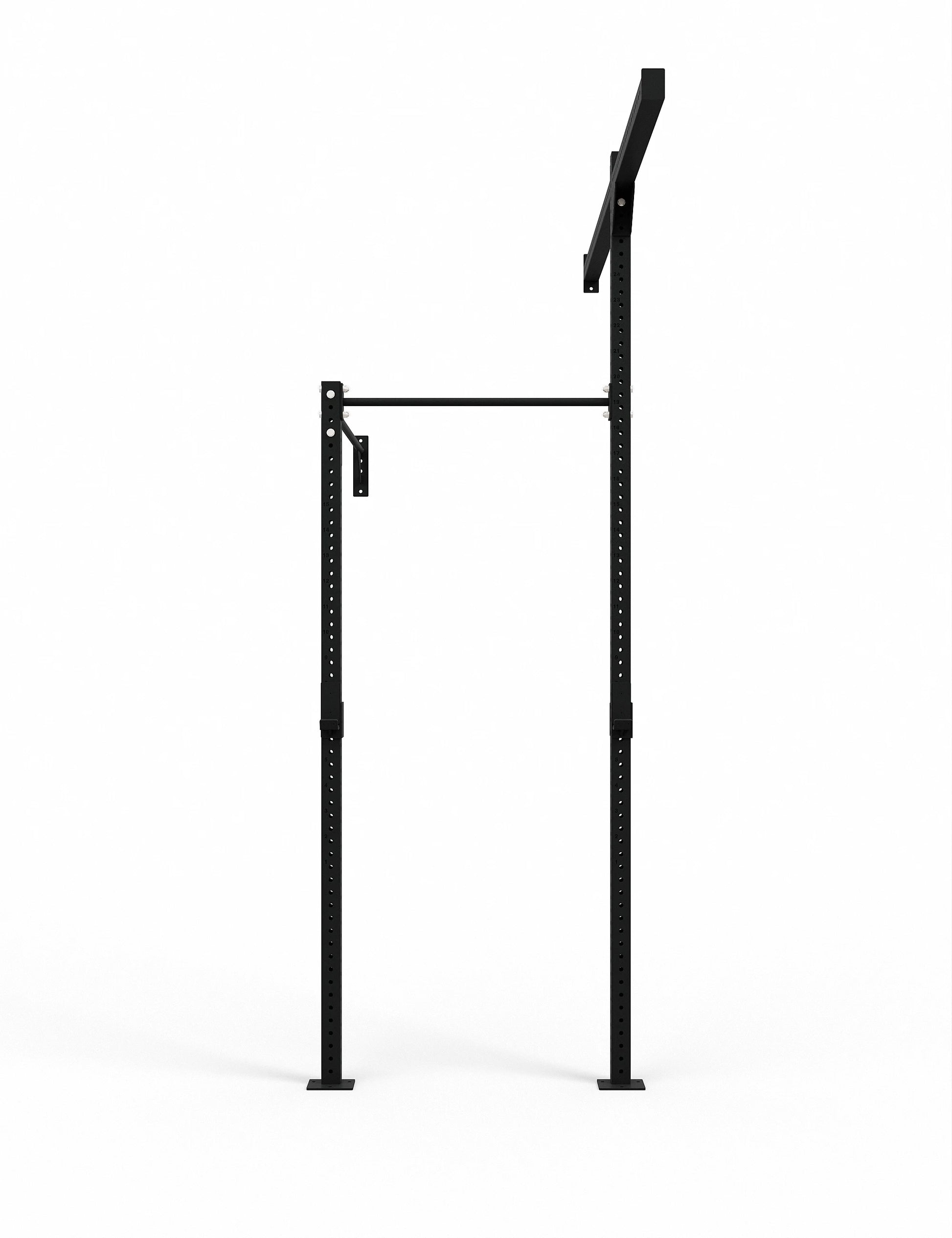

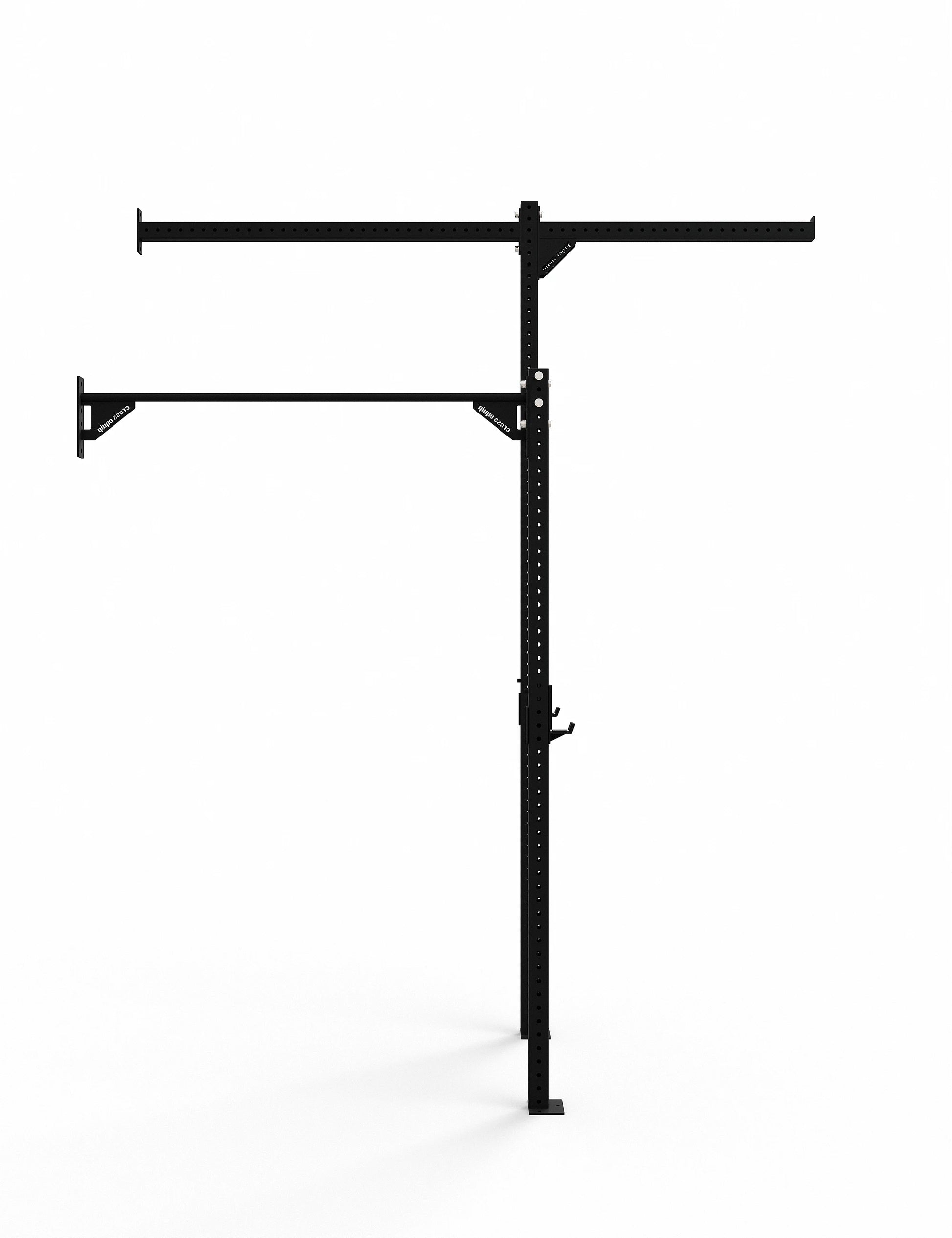

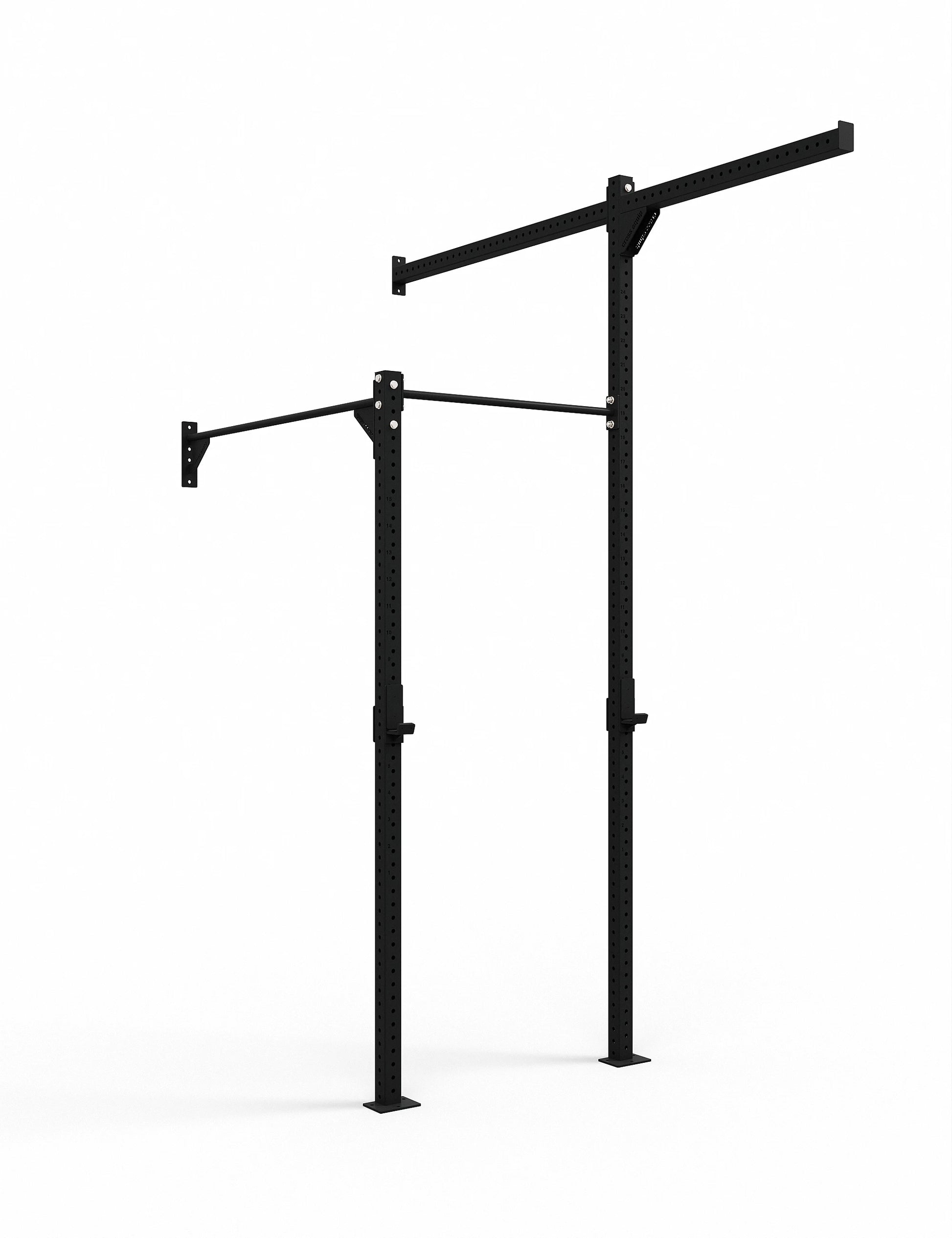

The CWR-1-HLO is a wallmount rig with alternating high and low uprights. The low upright (2.75 m) carries a pull-up bar facing the wall. The high upright (3.65 m) has a junction bar on top for climbing rope or rings – plus a shrimp trawler pointing away from the wall. The shrimp trawler is a curved bar where you hang rings for muscle-ups or a rope for rope climbs. Thanks to the curve, the rings hang freely in open space without touching the wall. The idea behind it: You line up multiple HIGH/LOW units along your wall. Athletes pull on the low upright and swing or climb on the high one. Everyone gets their own station – without getting in each other's way.
Built for daily box use
3 mm steel, 75x75 mm profile, 17 mm holes – the same specs as all our A-Line rigs. 96 kg total weight, plus wall and floor anchoring. Nothing moves, even when ten people are doing kipping pull-ups at the same time. J-cups are included, along with all mounting hardware. Important: You need a solid concrete wall. Lightweight walls are not suitable. We strongly recommend additional floor anchoring – especially when multiple athletes are working on the rig at the same time.
A-Line – Dein Gym, dein System.
Dieses Produkt ist Teil der A-Line – gebaut, um mit dir zu wachsen. Starte klein, erweitere jederzeit. Ein System, alle Möglichkeiten.

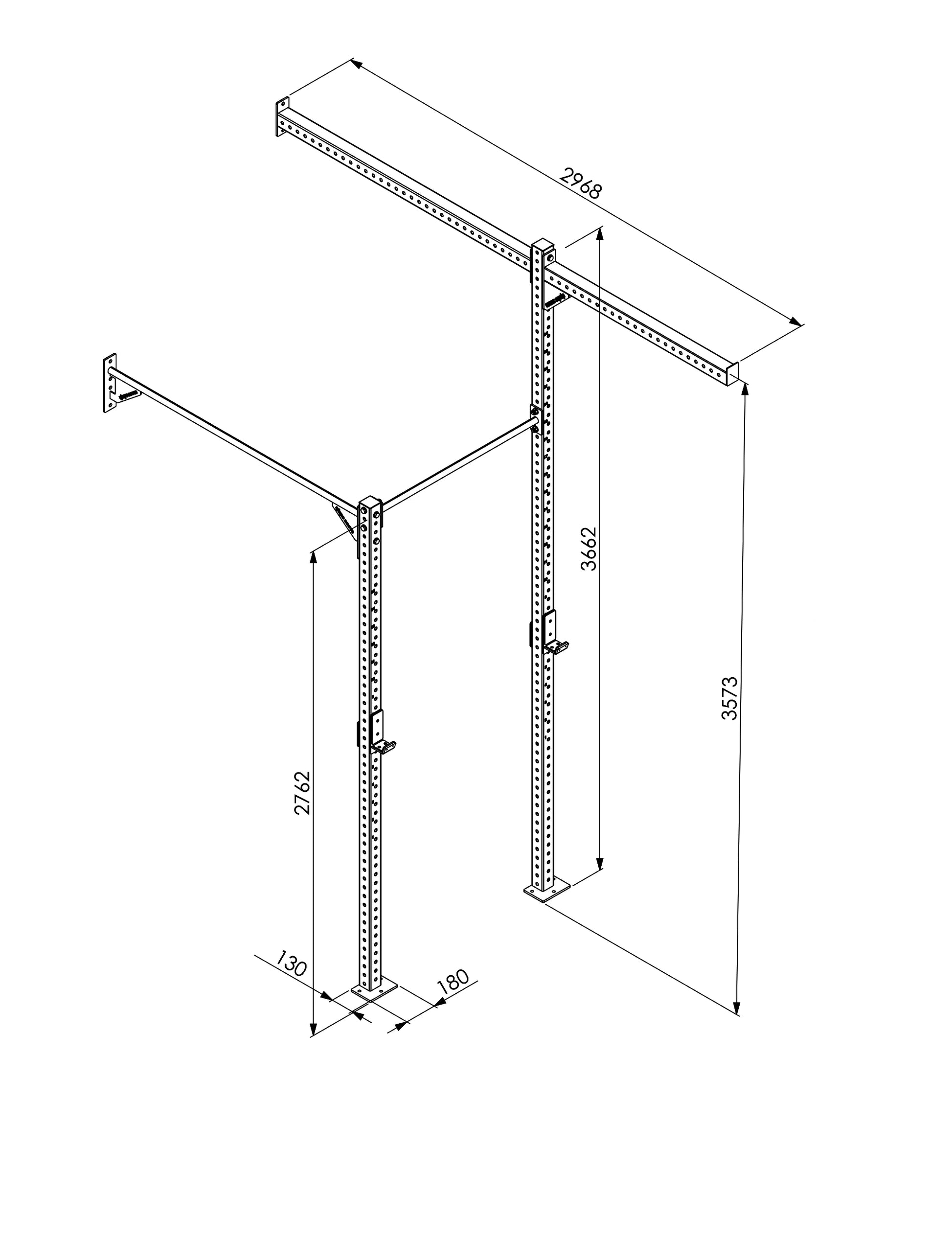

Technical Specifications
| Low upright | 275 cm |
|---|---|
| High upright | 365 cm |
| Distance between uprights | 106 cm |
| Depth (distance from wall) | 168 cm |
| Weight (all parts) | 96 kg |
| Steel | 3 mm thick |
| Profile | 75 x 75 mm |
| Hole diameter | 17 mm |
| Hole spacing | Every 5 cm |
| Finish | Black powder coated |
| Series | A-Line (fully compatible) |
| Mounting | Wall mount, floor anchoring recommended |
| Wall requirement | Solid concrete wall |
CWR-1-HLO Wallmount HIGH/LOW vs. Freestanding Rig
| Criteria | CWR-1-HLO Wallmount | Freestanding Rig |
|---|---|---|
| Footprint | Compact on the wall, floor stays clear | Needs floor space all around |
| Training stations | Maximized through HIGH/LOW concept | Depends on configuration |
| Rope climbs | Yes – shrimp trawler on the high upright | Only with enough ceiling height |
| Scalability | Expandable unit by unit | Requires more planning |
| Stability | Rock solid with wall + floor anchoring | Depends on total weight |
| Installation effort | Higher (concrete wall + floor) | Easier to set up |
| Room flexibility | Fixed to the wall | Freely positionable |
Frequently Asked Questions
What exactly is a shrimp trawler?
What type of wall do I need?
Do I need to anchor the rig to the floor as well?
Can I mount multiple units side by side?
Are A-Line attachments compatible?
Who is the CWR-1-HLO made for?
Customer reviews
We developed the HIGH/LOW concept because we had exactly this problem in our own box: lots of athletes, not enough wall space. The solution was simple – alternate low and high uprights. That way everyone has their station, whether it's pull-ups, muscle-ups, or rope climbs. We've been running this setup in our box for years and it works every single day.
