Double-Sided Rack 240 Small
Double-Sided Rack 240 Small
Slim footprint – fits into tight gym spaces
Two sides, two athletes – simultaneously
Expandable in rows for entire teams
Every attachment fits – full A-Line system
Couldn't load pickup availability
Usually ready in 24 hours
Double-Sided Rack 240 Small
-
cross equip Schweiz
Pickup available, usually ready in 24 hours
Schanzstrasse 1
8330 Pfäffikon ZH
Switzerland+412160746
Description

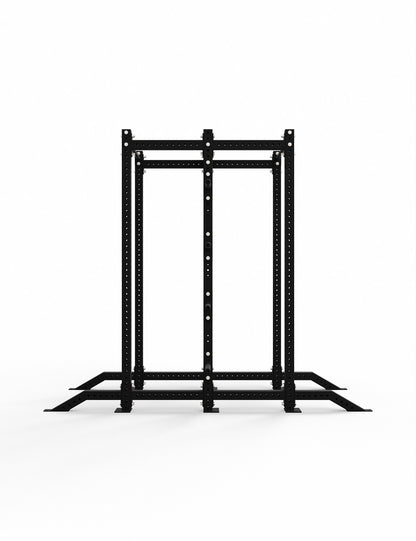

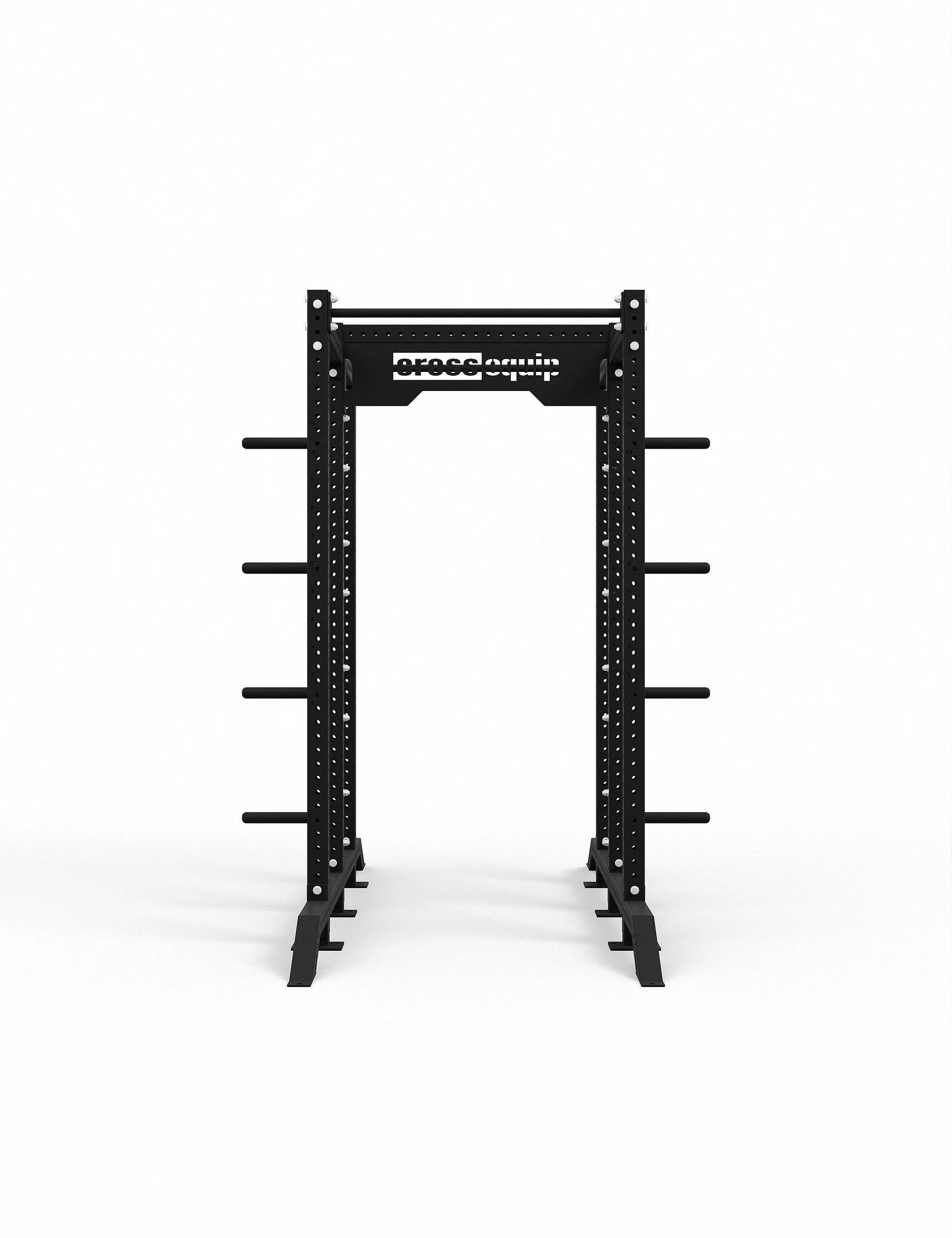

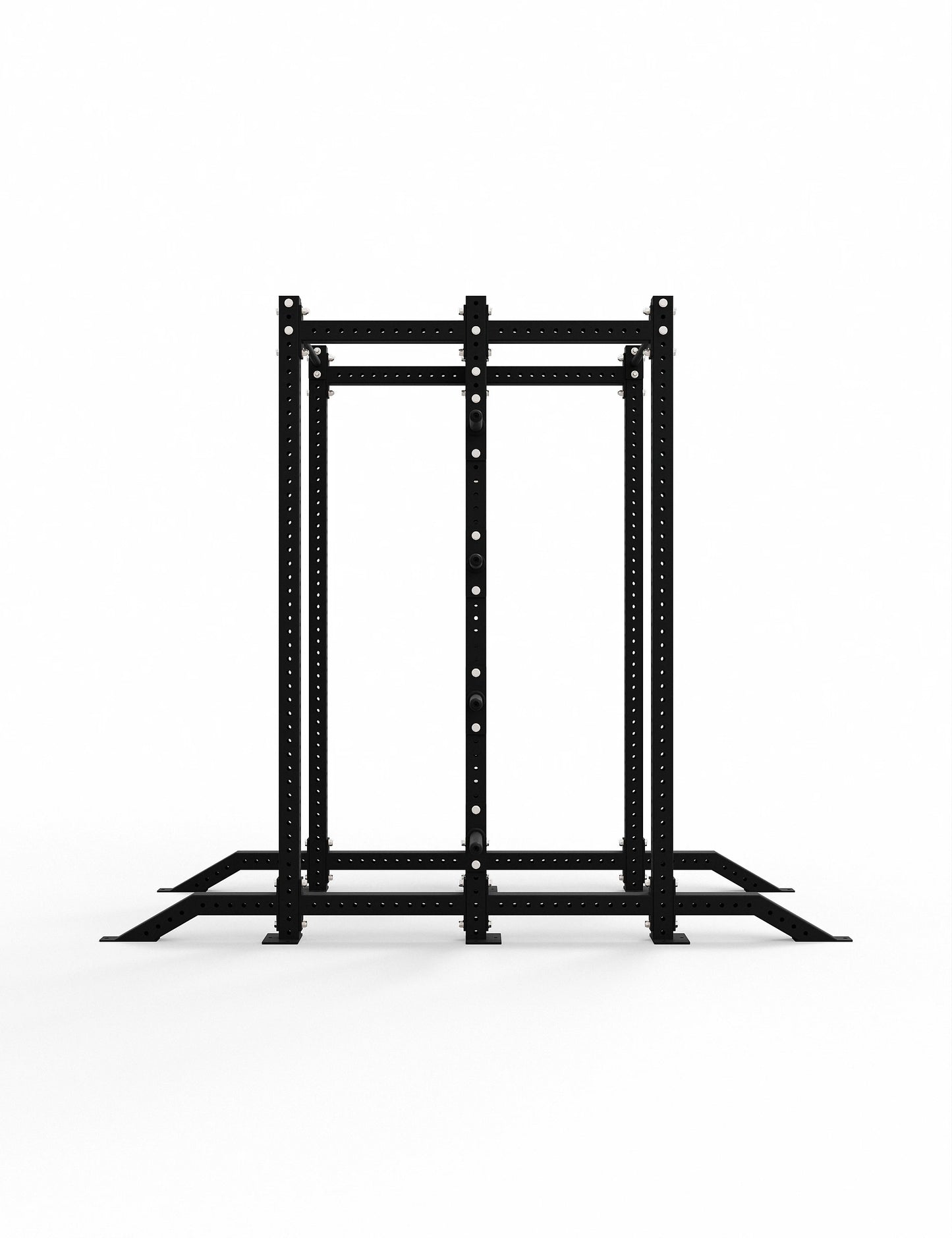

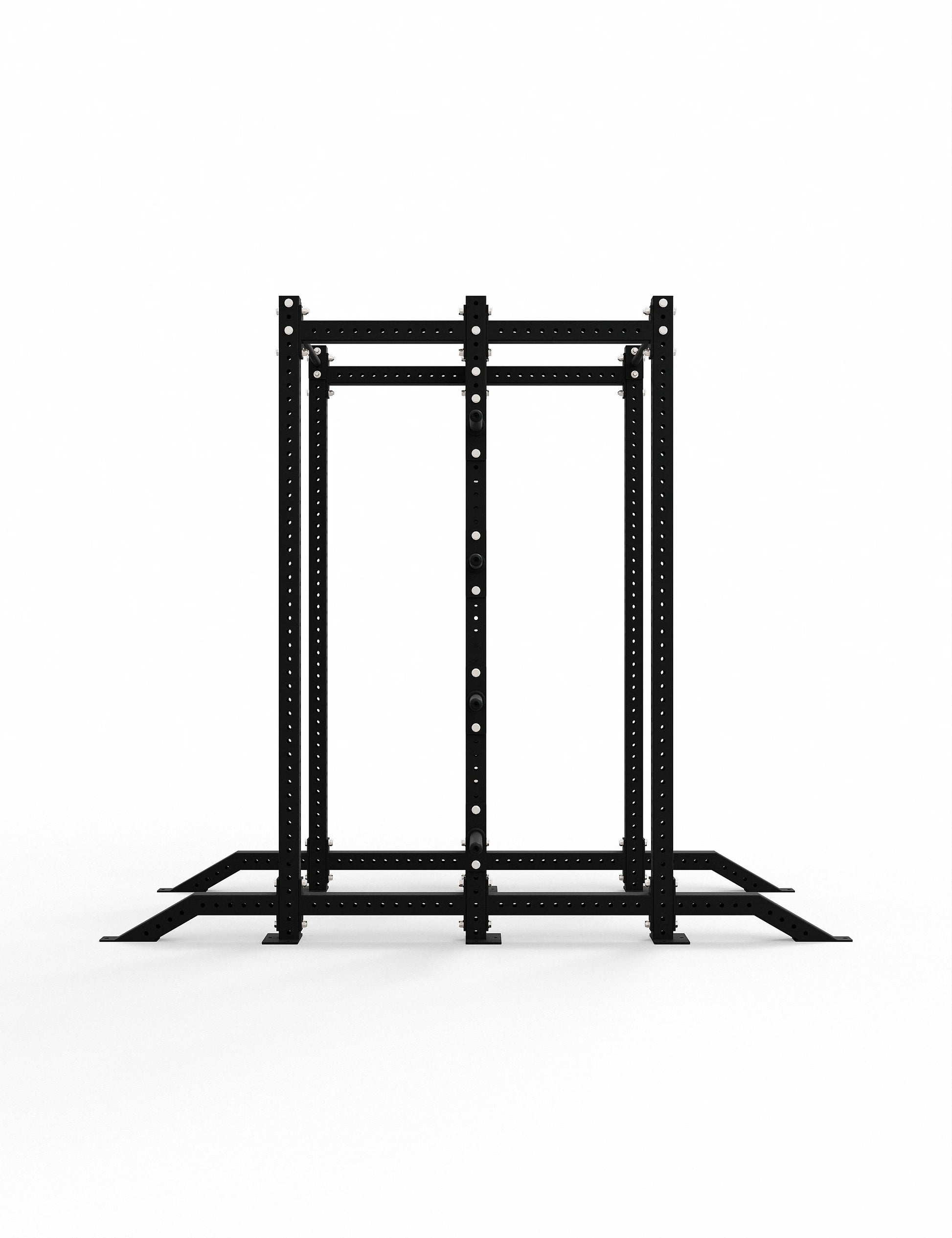

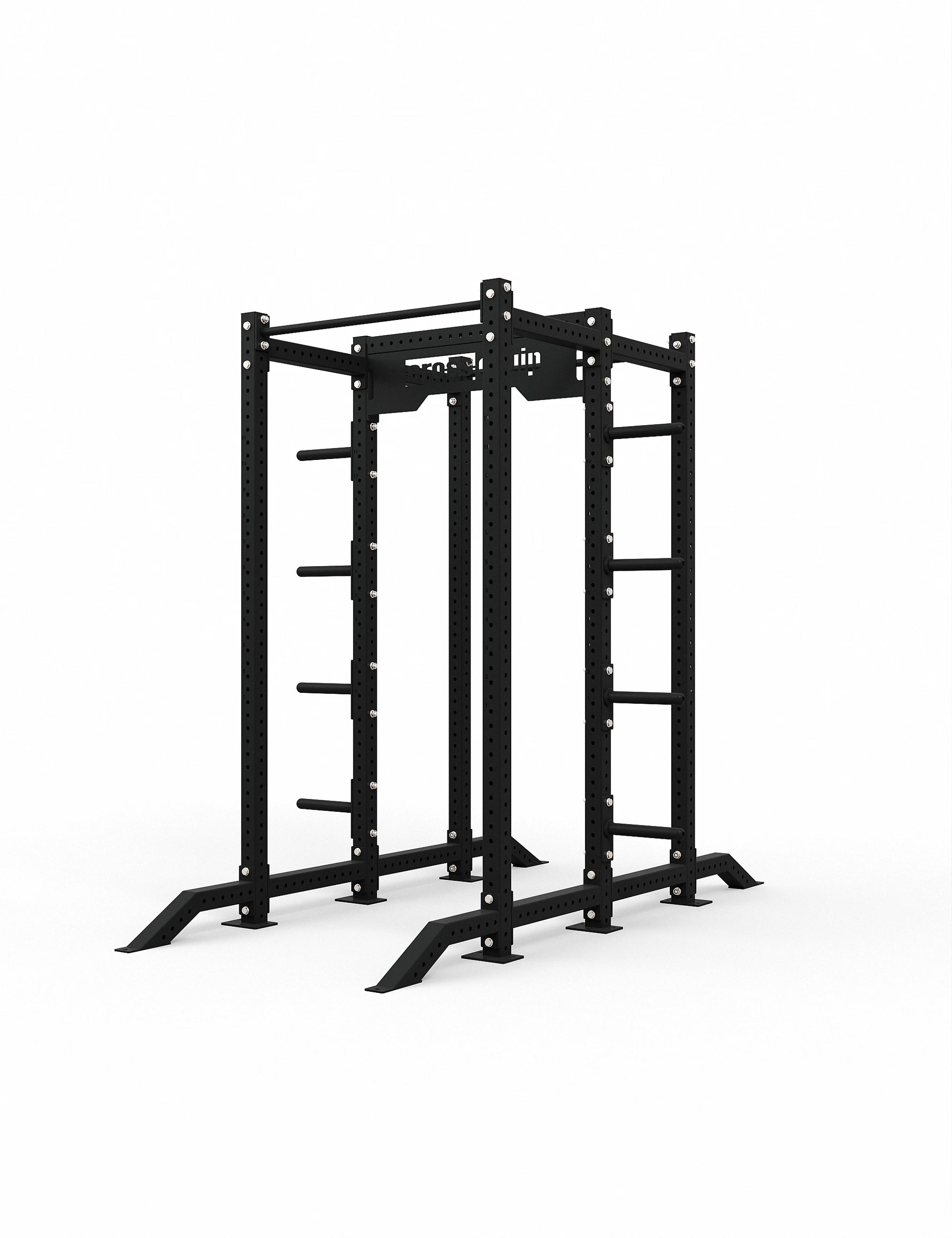

Compact power rack with no center post – two stations face-to-face
You squat on one side, your training partner benches on the other – face to face, simultaneously, without getting in each other's way. The Double Sided Rack 240 Small is the single-station version of our 2-rack set: a double-sided power rack with no center post, two training stations on a slim footprint. When your team grows, line up more racks side by side or upgrade directly to the 2-rack set (AL-DBSR-2-240-S) – the dimensions match, the connecting beams are available separately.
Squat rack with 269 kg own weight – full A-Line system
75 x 75 mm profile, 3 mm wall thickness – the same robust A-Line standard as all our racks. At 269 kg own weight, the rack stands stable – even without floor anchoring. You can bolt it down if you want, but it's not necessary. The laser-etched numbers make switching between groups fast and error-free – J-Hooks at height 23, Safety Straps at 14, done. And because the 240 Small is part of the A-Line series, every attachment in our range works. Dip Arms, Safety Straps, Plate Storage – all compatible, one system. J-Hooks, Weight Horns (30 cm) and a Single Junction Bar (106 cm) are included. Note: at 236 cm height, the rack needs at least 240 cm ceiling clearance – measure beforehand.
A-Line – Dein Gym, dein System.
Dieses Produkt ist Teil der A-Line – gebaut, um mit dir zu wachsen. Starte klein, erweitere jederzeit. Ein System, alle Möglichkeiten.

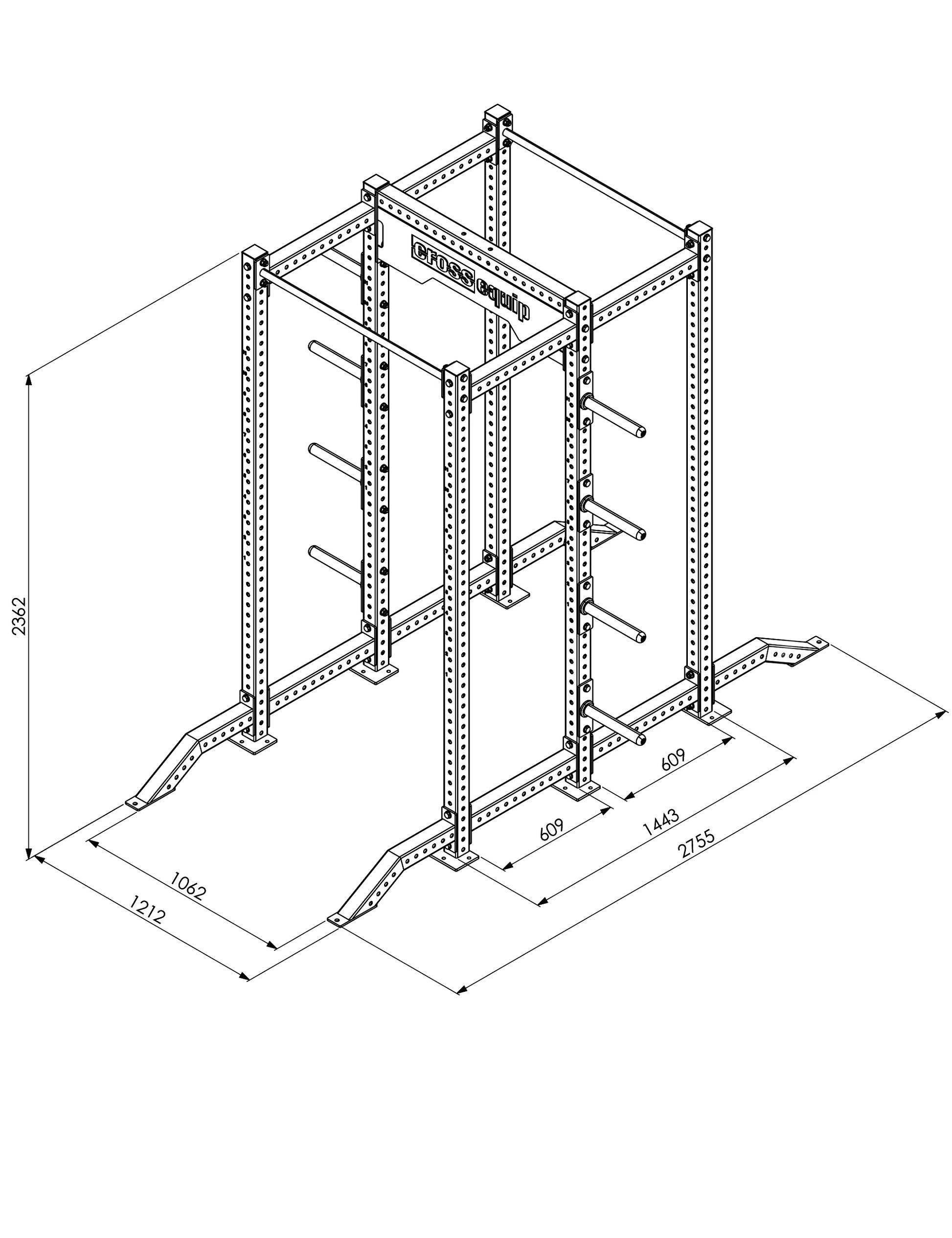

Technical Specifications
| Height | 236 cm |
|---|---|
| Width | 187 cm |
| Depth | 275 cm |
| Weight | 269 kg |
| Steel | 3 mm wall thickness |
| Profile | 75 x 75 mm |
| Hole diameter | 17 mm |
| Hole spacing | 5 cm |
| Coating | Black powder coated |
| Markings | Laser-etched numbers |
| Series | A-Line |
| Floor anchoring | If needed |
| Included | J-Hooks, Weight Horns 30 cm, Single Junction Bar 106 cm |
| Unit | 1 piece |
Double Sided Rack 240 Small (Single) vs. 2-Rack Double Sided Rack 240 Small
| Criteria | AL-DBSR-1-240-S (Single) | AL-DBSR-2-240-S (2-Rack) |
|---|---|---|
| Training stations | 2 | 4 + pull-up area |
| Height | 236 cm | 236 cm |
| Depth | 275 cm | 275 cm |
| Width | 187 cm | 476 cm |
| Weight | 269 kg | 574 kg |
| Pull-up bar / beam | No | Yes (2x Single Beam 168 cm) |
| Wall thickness | 3 mm | 3 mm |
| Profile | 75 x 75 mm | 75 x 75 mm |
| A-Line compatible | Yes | Yes |
| Expandable | Yes | Yes |
| Ideal for | Personal training, home gyms, small studios | Small teams, coaching groups, athletic clubs |
Both racks share the same construction – double-sided, no center post, face to face. The single rack is the compact entry point for two training stations. Need four stations plus a pull-up beam in a finished setup? Go with the 2-rack set. You can also start with the single rack and add a second one later – connected via the Junction Bar, that gives you four stations. The pull-up beam area can then be added separately.
Frequently Asked Questions
When does the single rack suffice and when do I need the 2-rack set?
How much ceiling height do I need?
Do I need to bolt the rack to the floor?
Can I combine the 240 Small with other A-Line racks?
Which attachments fit?
What's included?
Customer reviews
Not every gym needs four stations from day one. The single rack is the compact entry point into the double-sided A-Line system: two athletes face to face, slim footprint, no center post. When the team grows, you scale up with the 2-rack set or add more single racks – without rethinking your setup. That kind of scalability is what counts in club gyms at the end of the day.
